Bondone Clear Cast

Bondone Clear Cast

Bondone® Clear Cast is s two components, modified, low viscosity epoxy system for clear casting and lamination application. The system is clear, having excellent optical properties with negligible shrinkage on curing. Faster productivity can be achieved, if curing is performed at higher temperature near to 40°C.

Features:

The Epoxy casting system Bondone® Clear Cast offers:

1. Glass like transparent casting with good hardness.

2. Good wetting properties

3. High gloss finish

4. Long pot life

5. Resistance to water and chemicals

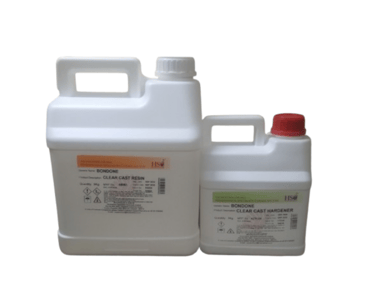

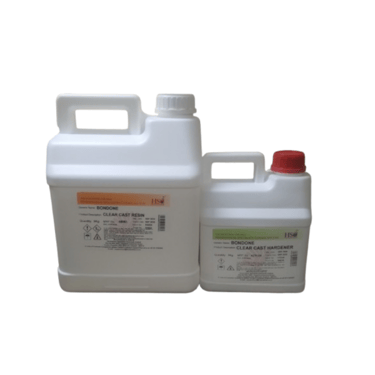

Bondone Clear cast resin and hardener.

*Price: ₹5841 / 12kg set,

*673 /1.2kg set

*including tax

Applications:

1. Table Top application

2. Clear casting articles and decorative parts

3. Handicrafts and decorative arts

Product Specifications:

1. Appearance (Visual): Clear liquid Clear liquid

2. Color (APHA): Resin - Max 30, Hardener - Max 40

3. Viscosity at 25ºC (mPas) Resin - 3,000-4,000, Hardener - 10-25

Mix specifications:

1. Mixing Ratio (R:H) (Pbw) 3 : 1

2. Mix Viscosity at 25ºC (mPas): 500-800

3. Pot life 100 gm at 25ºC (Minutes): 300-370

4. Peak exotherm temperature (°C): Max 55

5. Hardness Shore D: 75-80

Packaging:

Bondone® Clear Cast Resin is available in 9 Kg in Jerry can, 27 Kg in carboy. Bondone® Clear Cast Hardener is available in 3 Kg in jerry can, 9 Kg in jerry can. Also both resin & hardener are available in 200 Kg in HDPE drum.

Application method:

Mix mass should then be poured into a mould. The mould can be hard or made of silicone rubber. Moulding can be carried out by gravity or under vacuum. It does not trap air easily and does not heat up when used properly. Excessive humidity (above ~65%), low daylight and low temperature (less than 20°C) may retard the cure. Bondone Clear cast system may not work effectively in the monsoon season. Ensure ambient material and workshop temperature is between 20°C and 35°C and humidity level below 65%. Filled mould can also be kept under vacuum to achieve air free components.

Mixing:

Mixing is critical and must be accurate. Take resin and hardener in desired ratios. The combined liquids must be thoroughly mixed, manually or mechanically to completely remove any hasiness or streaks. Scrap the sides and base of the mixing pot before transferring the mix to a desired mould for casting. It is advisable to apply the vacuum to remove air from the mix just prior to pouring into the moulds. It is important to mix small quantity at a time as epoxy systems tend to give exotherm when kept in a mass.

Safety:

Wear personal protective equipment (PPE). Avoid contact with the eyes and skin. In case of direct contact, it should be washed off immediately with warm water. Avoid breathing vapours, mist or gas. Please refer to the Safety Data Sheet.

Storage Conditions

1. Hardener has tendency to fume so it shall always be kept in closed conditions.

2. It is very fast curing system even at room temperature; therefore, it is recommended to mix smaller masses.

Temperatures below 15°C and humidity over 80RH shall retard cure and also result in blush surface, it is therefore recommended to warm the resin and hardener prior to mixing and then apply on hot stone surface.

Shelf Life:

The shelf life for Resin is 12 months and for Hardener is 12 months from date of manufacturing

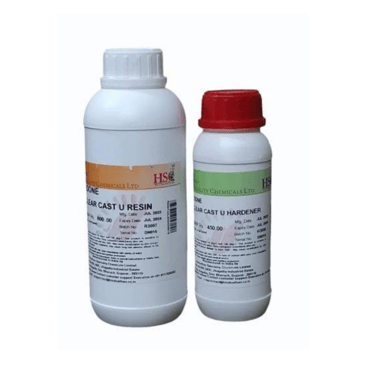

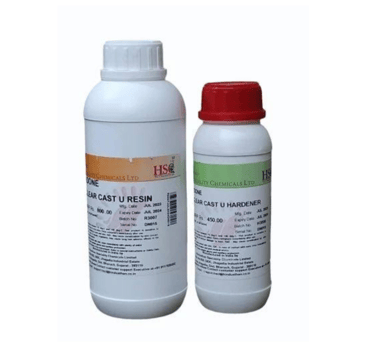

Bondone Clear Cast 'U'

Bondone® Clear Cast 'U is a two components, UV stable, modified, low viscosity epoxy system for clear casting and lamination application. The system is clear, having excellent optical properties with negligible shrinkage on curing. Faster productivity can be achieved, if curing is performed at higher temperature near to 40°C.

1. The Epoxy casting system Bondone® Clear Cast offers:

2. Glass like transparent casting with good hardness.

3. Good resistance to Yellowing

4. Good wetting properties

5. High gloss finish

6. Long pot life

7. Resistance to water and chemicals

Applications :

1. Table Top application:

2. Clear casting articles and decorative parts :

3. Handicrafts and decorative arts

4. Flower encapsulation

5. Recommended for making transparent item
